Quartz sand capacity: 50 kg
Belt motor rotation speed: 140 r/min
Pan diameter: ￠600 mm
Motor power: 2.2 kw
Net weight of machine: 370 kg
Dimensions (LxWxH): 1400 × 690 × 905 mm

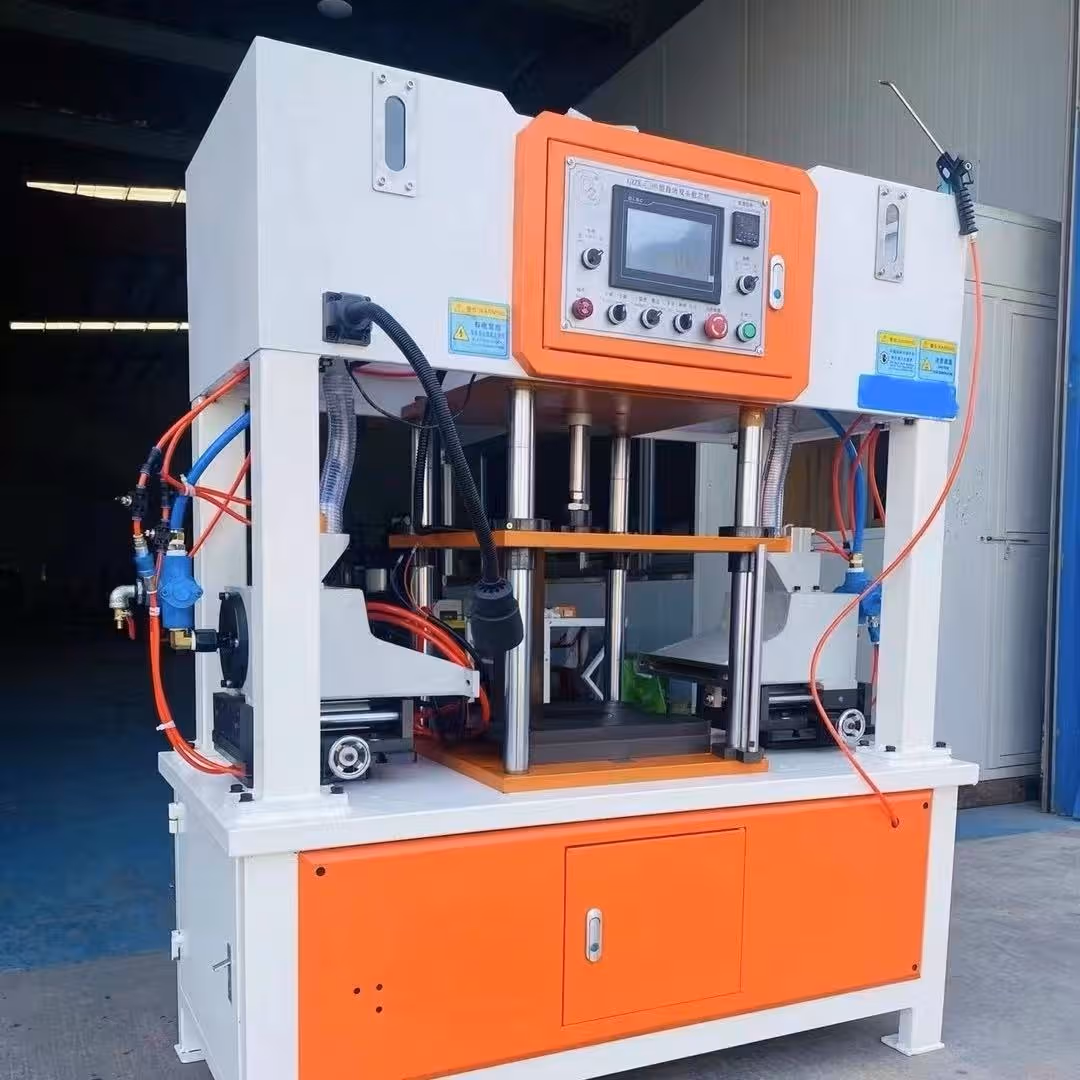

Maximum sand core weight: 3.2 kg × 2
Clear distance between guide posts: 405 mm
Core box open/close cylinder stroke: 300 mm
Left/right core box movement stroke: 150 mm
Core ejection method: Compatible with both top and bottom ejection
Bottom ejection method: Pneumatic
Core box lateral adjustment: Handwheel
Exhaust system: Dual exhaust valves
Heating power: 10 kW
Net weight of machine: 580 kg
Dimensions (LxWxH): 1590 × 720 × 1730 mm

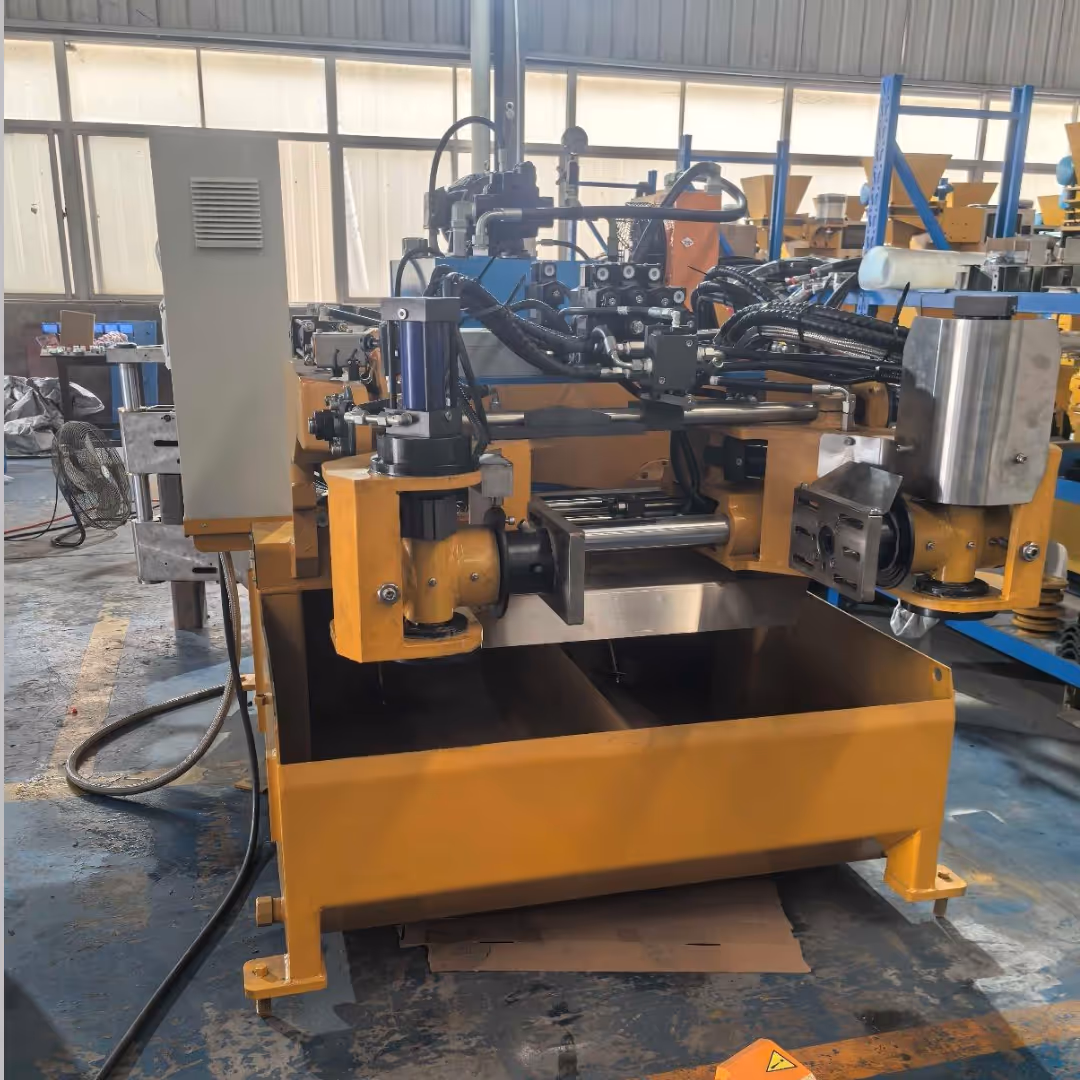

Maximum mold size: ￠450 mm
Maximum mold weight: 130 kg
Maximum merging distance: ≤250 mm
Hydraulic pressure: 40–60 KPa
Hydraulic oil capacity: 165 L
Net weight of the machine: 1520 kg
Dimensions (LxWxH): 2250 × 2160 × 1580mm

Special Features
Variable frequency control
Independent oil return system
Air cooling system
Automatic guide rail lubrication
Separate soaking time settings
